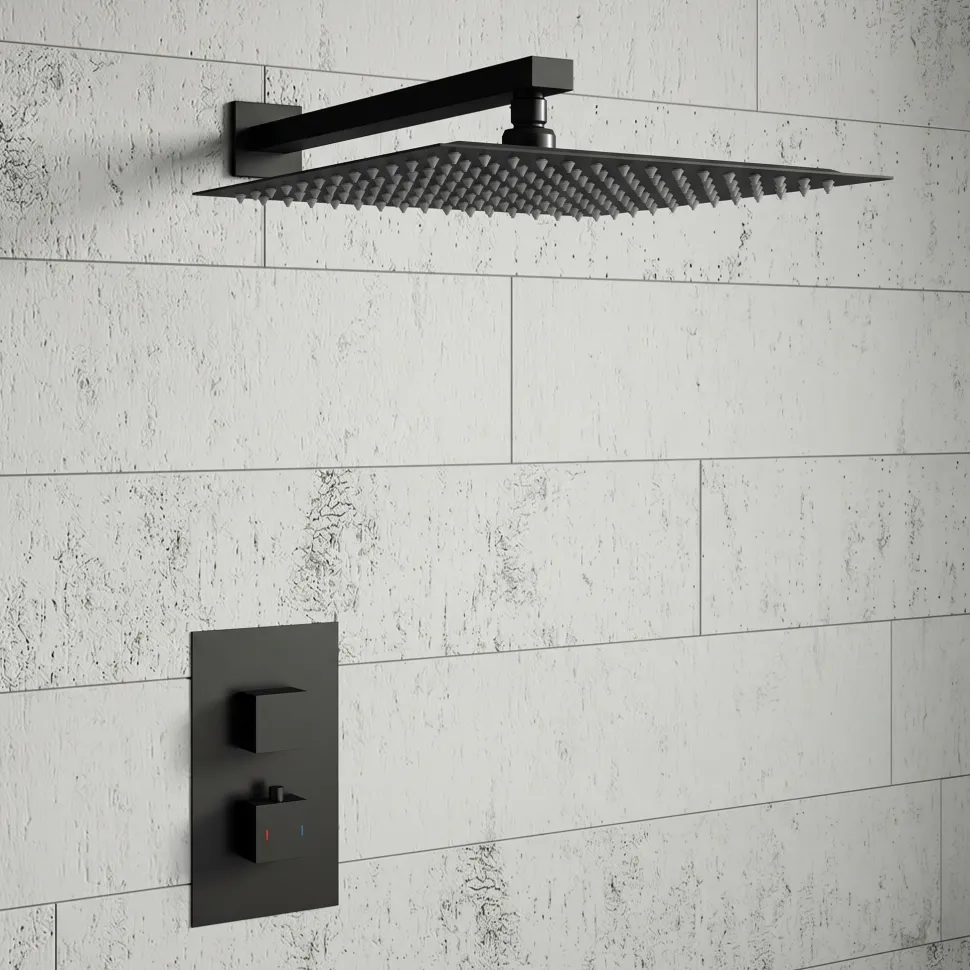

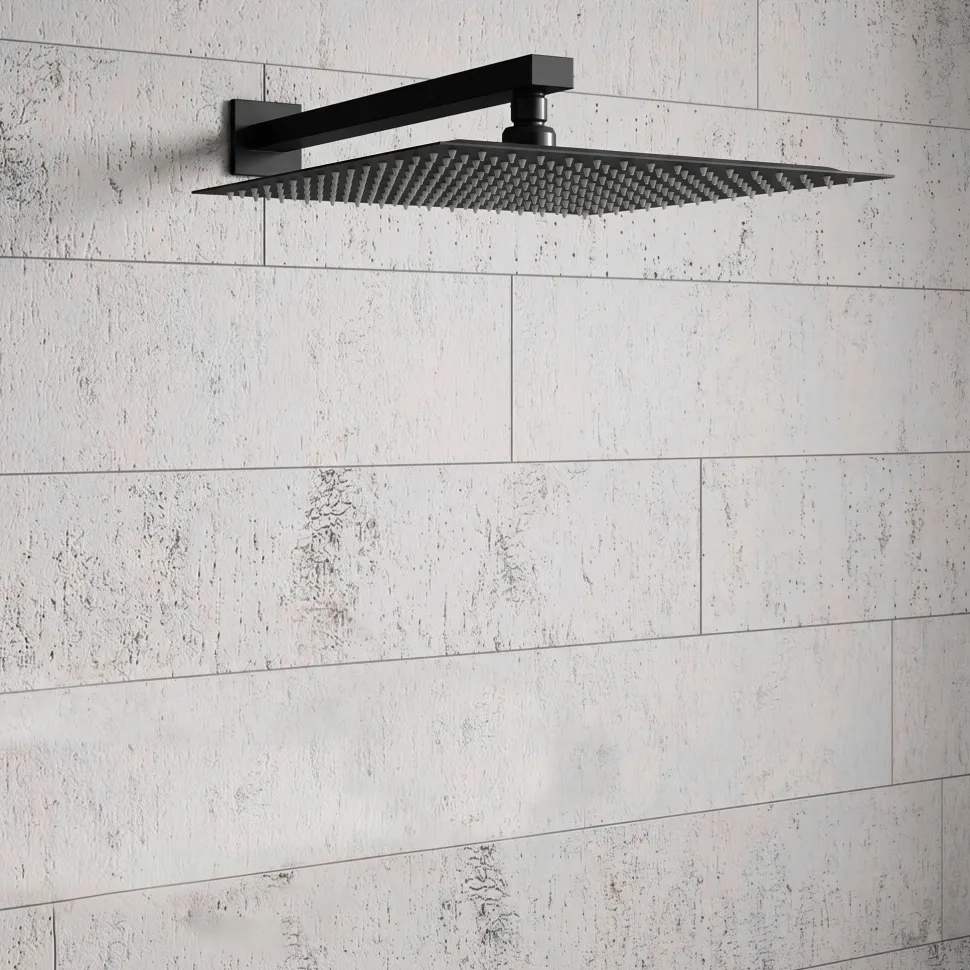

Harbour Status Concealed Shower Valve & Wall Mounted Fixed Shower Head – Matt Black

• 1 outlet concealed thermostatic shower valve with wall mounted shower arm and either a 200mm or 300mm shower head
• Shower arm is made from Brass with a Matt Black finish

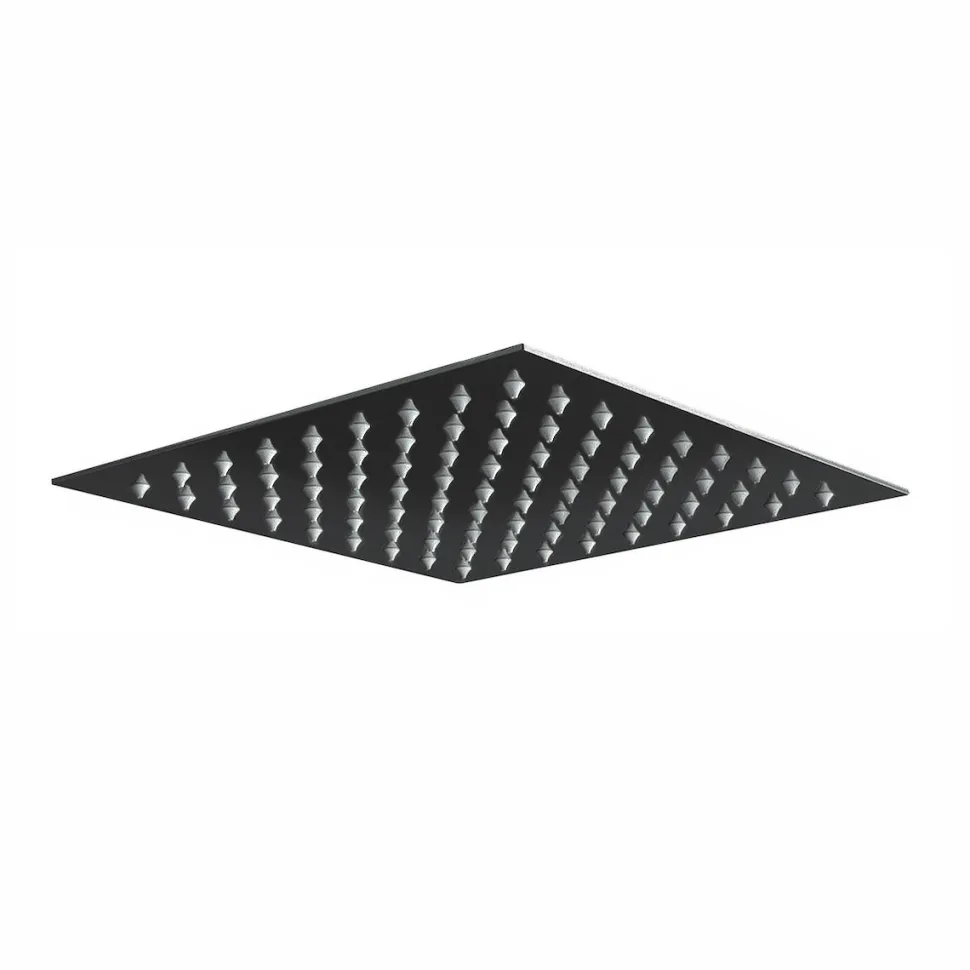

• Shower head is made from Stainless Steel with easy clean nozzles

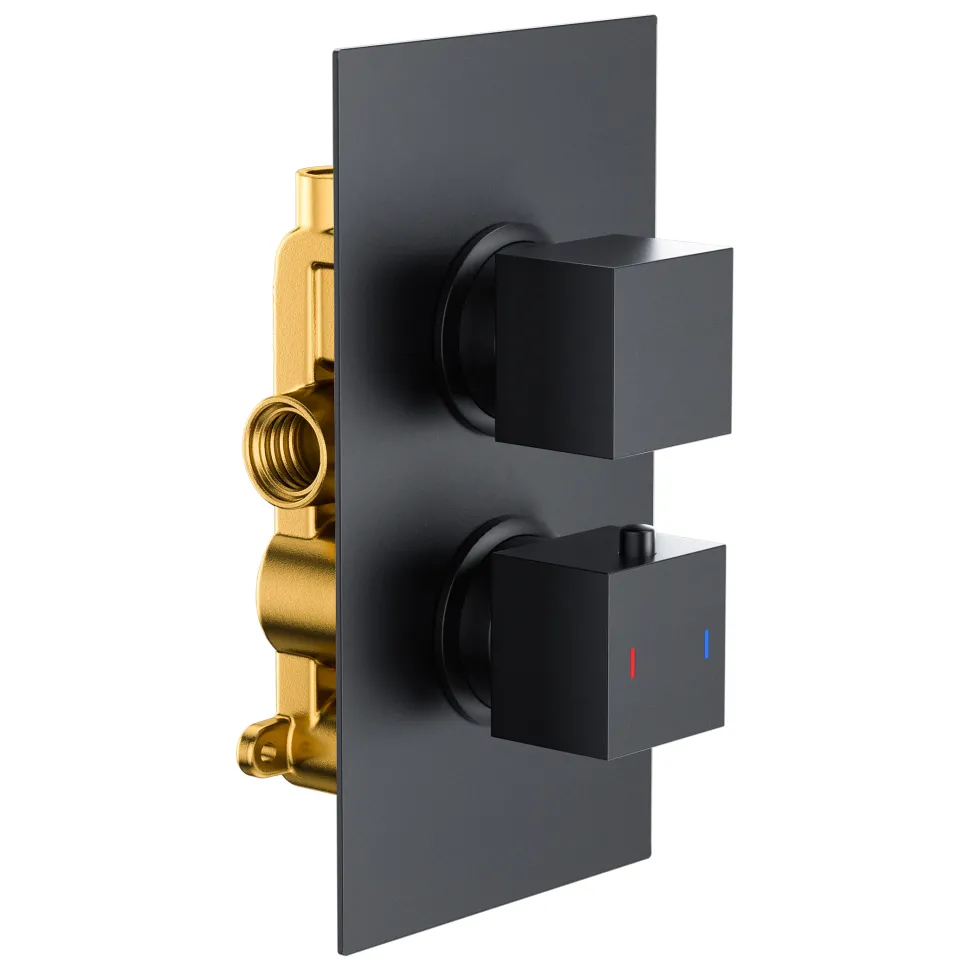

• Thermostatic valve protects you from sudden changes in temperature, helping prevent scalding
• Ceramic disc technology prevents any unwanted leaks or drips
• Interchangeable backplate design allows portrait or landscape orientation
• WRAS approved

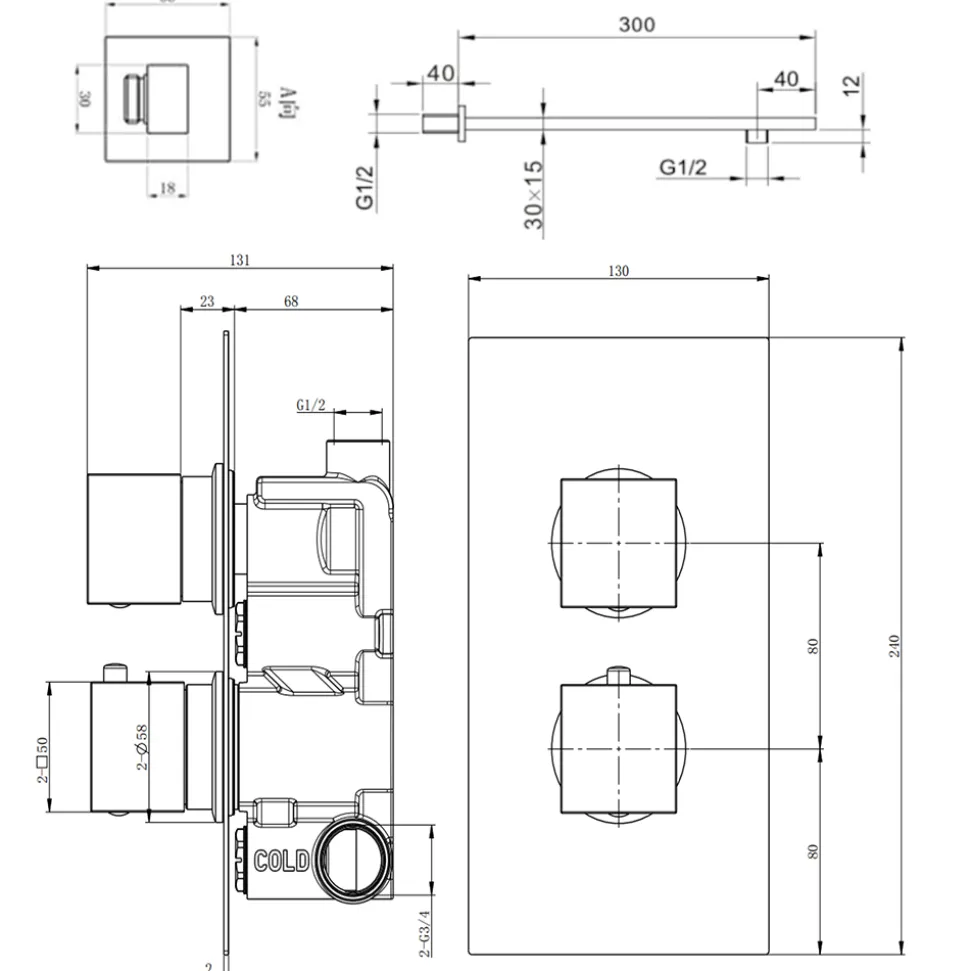

Shower valve dimensions:

• Height – 130mm
• Width – 240mm
• Depth – 131mm

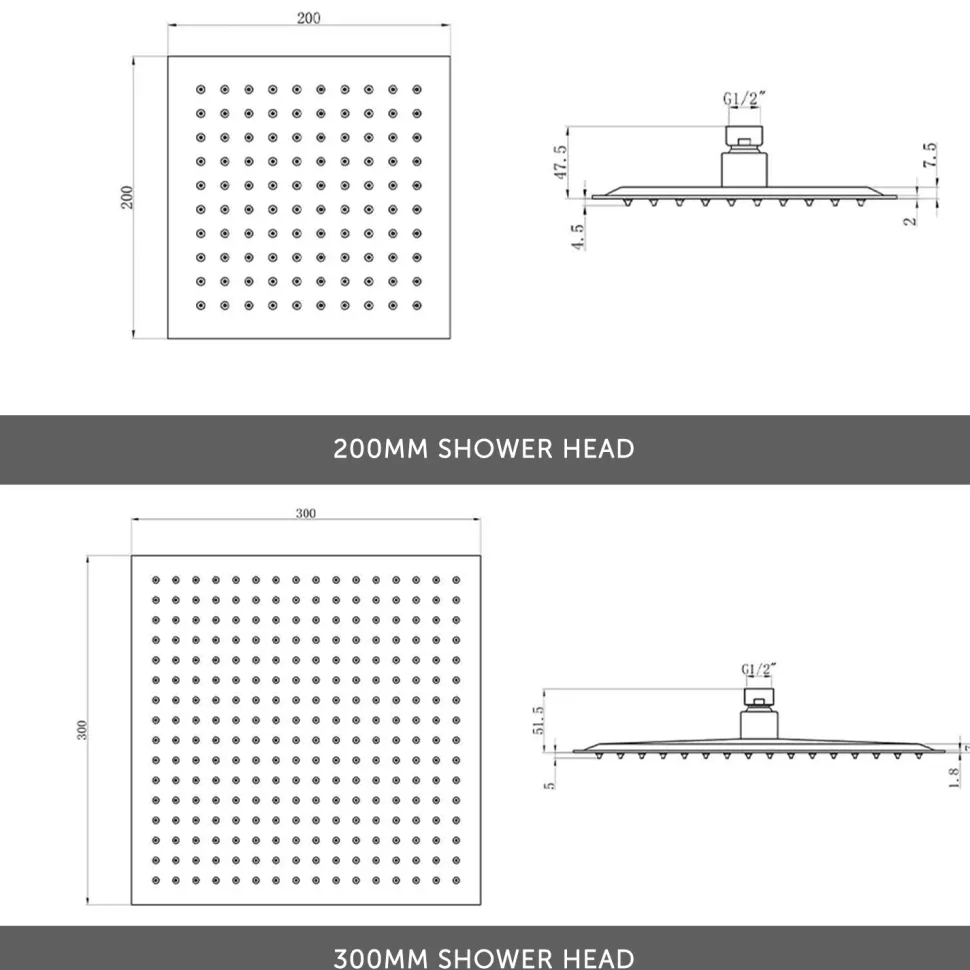

200mm shower head dimensions:

• Height: 47.5mm
• Depth: 200mm
• Width: 200mm
• Minimum pressure required for shower valve and 200mm shower head: 0.5 bar

300mm shower head dimensions:

• Height: 51.5mm
• Depth: 300mm
• Width: 300mm
• Minimum pressure required for 300mm shower head: 0.5 bar

Flow rates:

• 0.5 bar (l/min): 11.1
• 1.0 bar (l/min): 15.5
• 1.5 bar (l/min): 18.9
• 2.0 bar (l/min): 21.8
• 3.0 bar (l/min): 26.5
• 4.0 bar (l/min): 30.5
• 5.0 bar (l/min): 33.8
