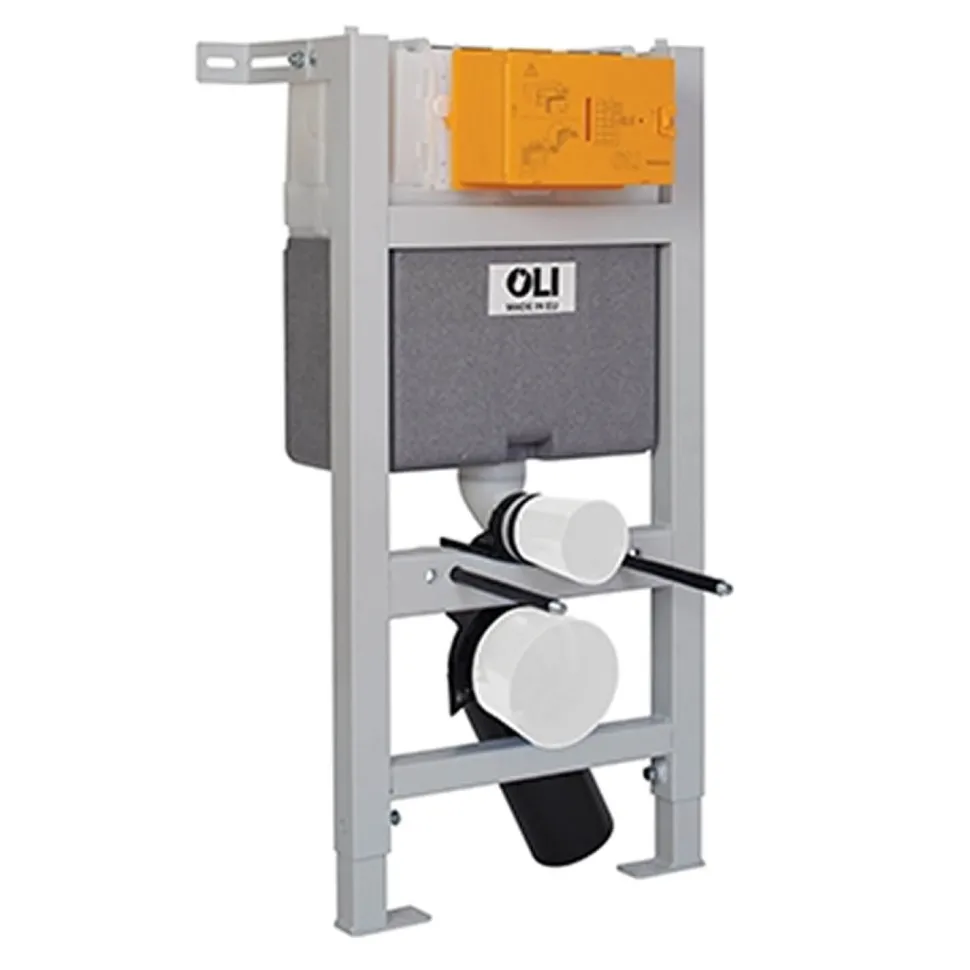

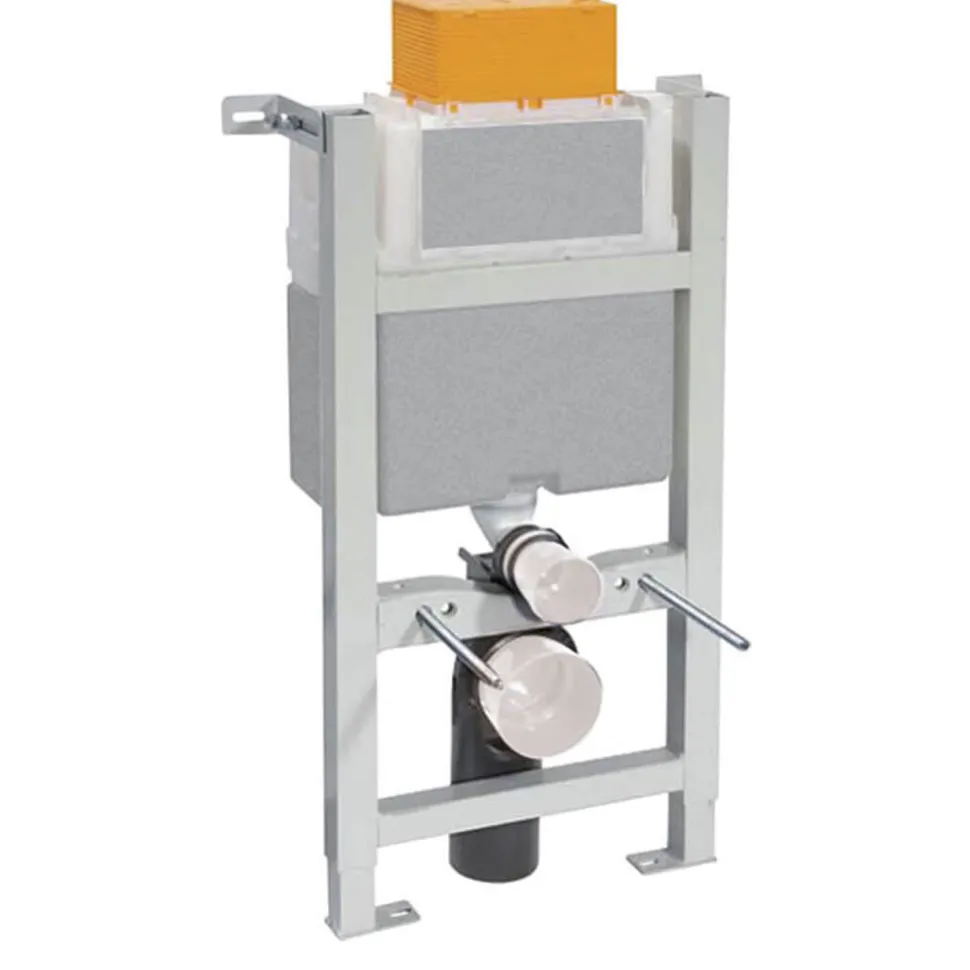

VOS 0.82m Cistern Frame for Wall Hung Toilets

• 820mm Pre-wall, freestanding WC frame – with brackets included
• Reduced height frame for WC installation under windows, or where space is limited
• Easy and quick installation with Fast-Fit system – Fast-Fit provides a fixation to the load bearing walls and allows for a fast and precise levelling of the frame
• Frame tested with 400kg load
• High-performance adjustable dual flush saves you on your water bill; default of 6/3 litres and adjustable to 4/2 litres or 7/3 litres
• Wide selection of decorative flush plates (sold separately) can be installed on the top or in front of the cistern
• This VOS cistern is only compatible with VOS and Butler & Rose Caledonia flush plates, please see our recommended extras
• Quiet operation
• Solid wall or drywall installation
• Legs adjustable from 0 to 200mm height (resulting in overall height between 820 and 1020mm)
• Corrosion-resistant 1.5mm thick painted tubular steel frame
• EN 14055 CE approved and Class 1 certified
• 5 year manufacturer’s guarantee –

Dimensions:

• Adjustable Height – 820-1020mm
• Width – 400mm
• Depth – 150-200mm
