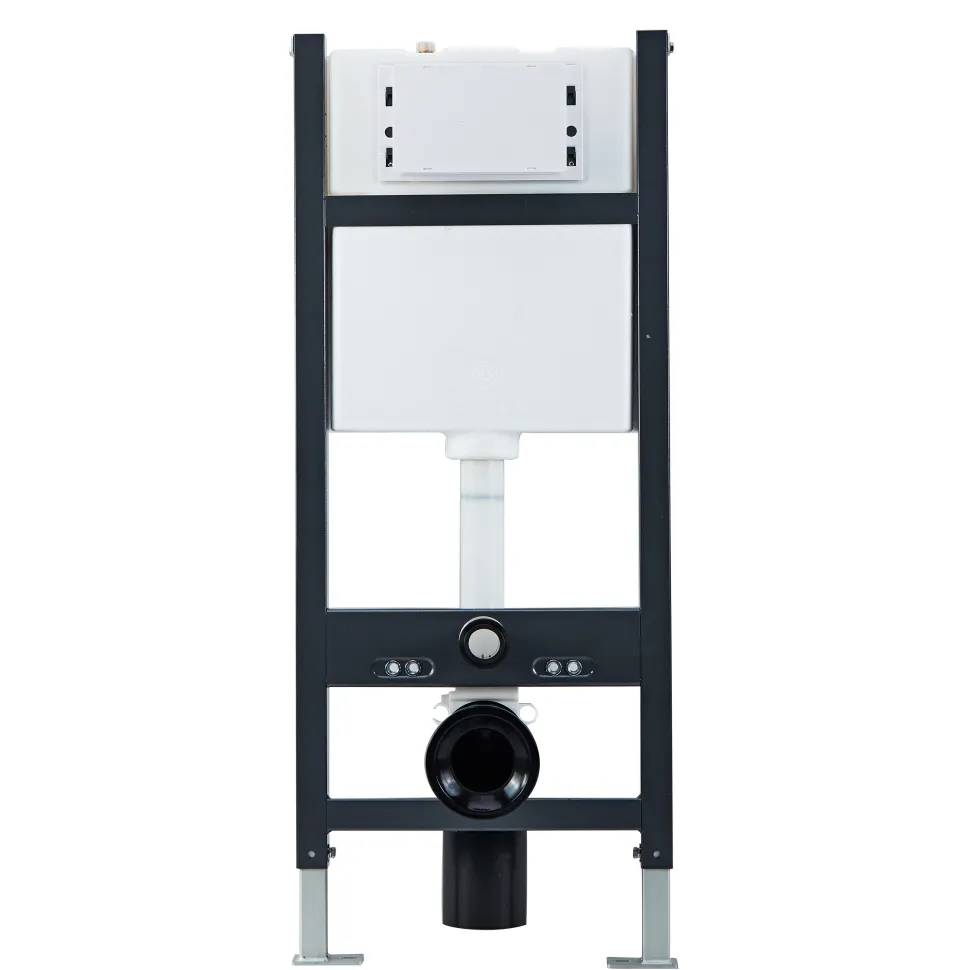

Wall Hung Toilet Frame and Pneumatic Concealed Cistern

• Wall hung concealed WC cistern and frame
• Height adjustable frame with slimline profile
• Made from galvanised steel & ABS plastic for long-lasting and durable construction
• Expanded polystyrene jacket helps to reduce condensation and enables silent water filling & discharging
• Dual flush pneumatic system, designed to save water and reduce your bill
• Adjustable dual flush system to save water and reduce your bills – preset to 6/3 litres as standard, and adjustable between 6-7l for the full flush and 3-4l for the half flush
• Water inlet location on left & right hand side for easy installation
• Cistern operating pressure: 0.2 – 10 bar
• Frame weight limit: 400kg
• Suitable for solid wall and plasterboard installations
• Supplied with straight pan connector and angled pan connector
• Flush plate sold separately, please see our recommended extras
• Wall hung toilet sold separately, shop the range
• Lifetime manufacturer’s guarantee

This cistern & frame is specifically designed for ‘Dual Flush Plate with Round or Angular Buttons’, as seen in our recommended extras above or alternatively,

Dimensions:

• Height: 1134 – 1464mm
• Width: 480mm
• Depth: 152mm
